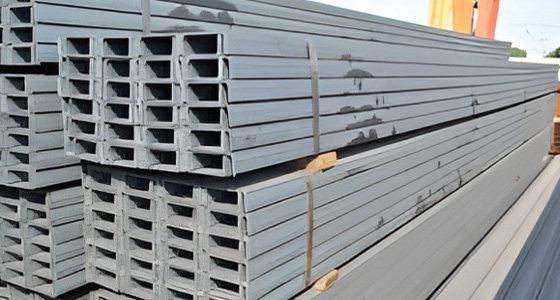

Channels are U- or C-shaped steel sections with parallel flanges connected by a web. Their open profile delivers excellent resistance to bending about one axis and makes them lighter than comparable closed sections. Channels are typically hot-rolled from mild steel for general structural applications, or formed from high-tensile steel for specialized use where weight savings are critical. Their flat back flange also allows easy bolting or welding to other members, making them highly versatile in modular construction.
For more detailed information on our grades and specifications, please visit our Grades & Specifications page.
Grades & Specifications| Section | Depth (mm) | Flange Width (mm) | Flange Thickness (mm) | Web Thickness (mm) | Section Weight (kg/m) |
|---|---|---|---|---|---|
| 75 x 40 | 75 | 40 | - | - | 6 |
| 75 x 40 | 75 | 40 | 7.3 | 4.4 | 7.14 |
| 100 x 50 | 100 | 50 | 7.5 | 4.7 | 9.56 |
| 100 x 50 | 100 | 50 | 7.5 | 4.7 | 10.6 |
| 125 x 65 | 125 | 65 | 8.1 | 5 | 13.1 |
| 150 x 75 | 150 | 75 | 9 | 5.4 | 16.8 |
| 175 x 75 | 175 | 75 | 10.2 | 5.7 | 19.6 |
| 200 x 100 | 200 | 100 | 11.4 | 6.1 | 22.3 |
| 250 x 80 | 250 | 80 | 14.1 | 7.1 | 30.6 |
| 250 x 82 | 250 | 82 | 14.1 | 7.1 | 34.2 |
| 300 x 90 | 300 | 90 | 13.6 | 7.6 | 36.3 |
| 300 x 92 | 300 | 92 | 13.6 | 7.6 | 41.5 |
| 400 x 100 | 400 | 100 | 15.3 | 8.8 | 50.1 |
Note: All dimensions listed on this page are provided for reference only. Product availability is subject to stock levels and cannot be guaranteed.
